Non‑encapsulated Class‑H Dry‑type Power Transformer Series

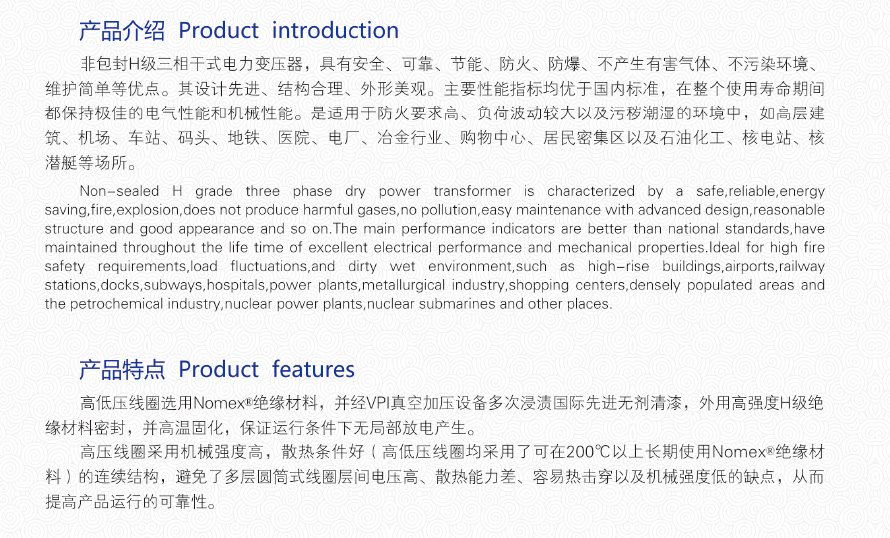

It is applicable to environments with high fire‑protection requirements, large load fluctuations, as well as polluted and humid conditions, such as high‑rise buildings, airports, stations, wharves, subways, hospitals, power plants, metallurgical industries, shopping centers, densely‑populated residential areas, petrochemical plants, nuclear power plants and nuclear submarines.

Online Inquiry

Previous Next

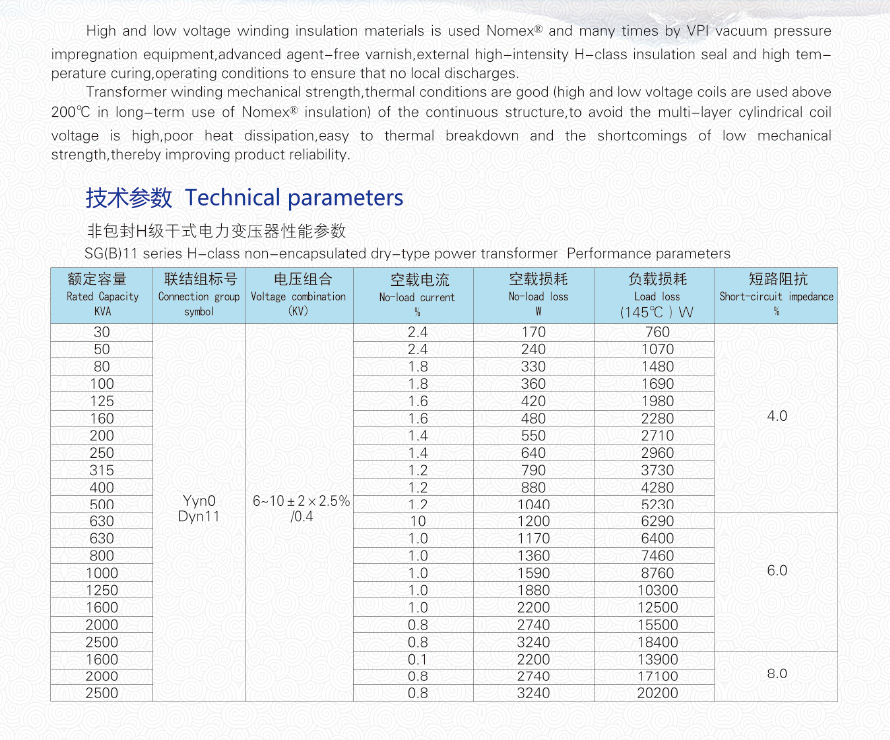

Detailed Content Specifications Product Packaging
