S(B)H15‑M, S(B)H16‑M Sealed Amorphous Alloy Distribution Transformer-Wuhan Hongxin Jucheng Electric Co., Ltd.

S(B)H15‑M, S(B)H16‑M Sealed Amorphous Alloy Distribution Transformer

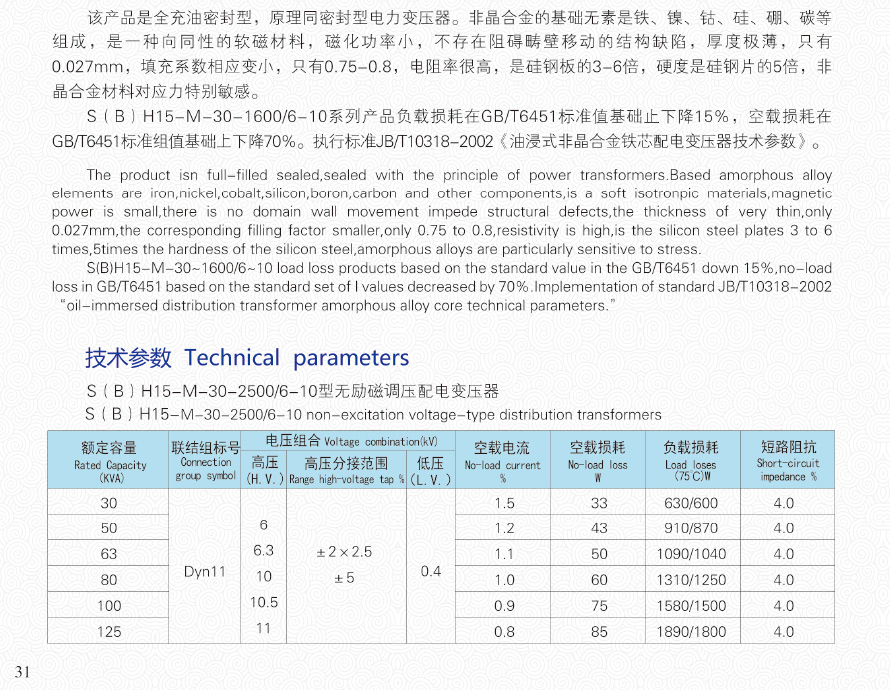

This product adopts fully oil‑filled sealed structure with the same working principle as sealed power transformers. Amorphous alloy is composed of basic elements including iron, nickel, cobalt, silicon, boron and carbon. It is an isotropic soft magnetic material featuring low magnetizing power, no structural defects hindering domain‑wall movement and extremely thin thickness.
